Rack-Mount Liquid-Cooled CDU For Data Centers
Rack-mount liquid-cooled CDU is suitable for IDC computer rooms and data centers,there are two standard power consumption products (65KW/130KW) to choose from. Equipped with dual power supplies, power supply 220v, input power 480w, a single CDU is equipped with 2 pumps, and supports cycle and automatic fault switching functions; local and remote system parameter settings, running status viewing, running time recording, alarm information query, and also It can automatically save settings and fault information and will not be lost when the power is turned off. When the power is turned off and then comes back, the CDU can start and run automatically.

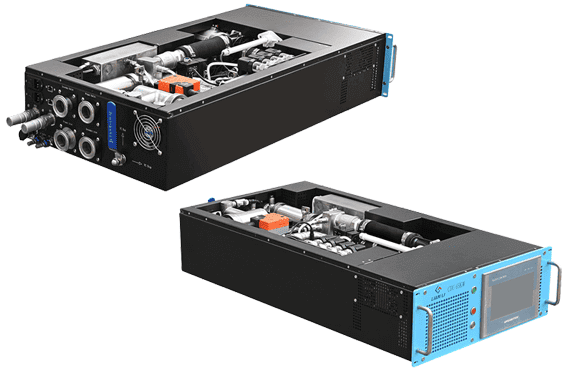

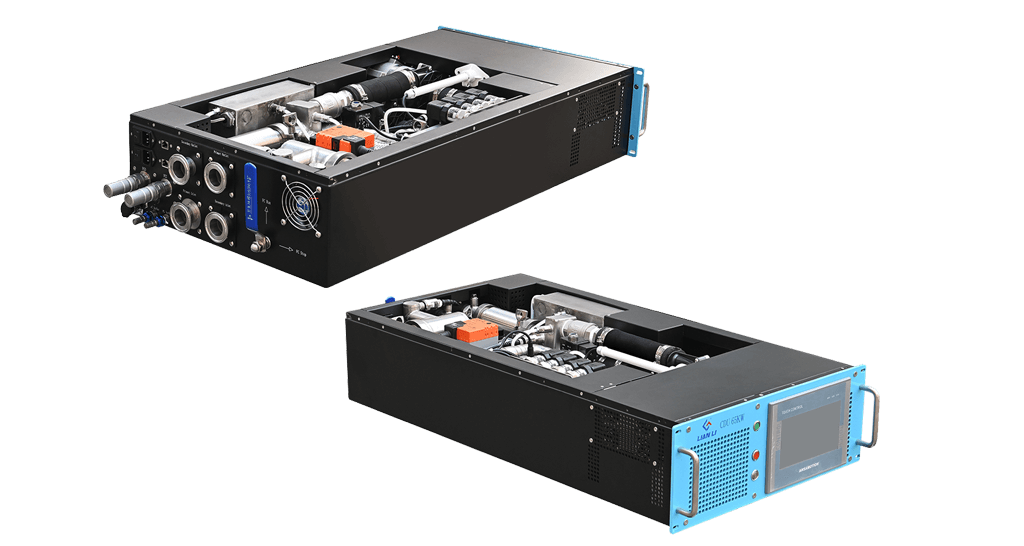

65KW Embedded
Server Coolant Distribution Unit
Space Revolution
✅ 0 additional footprint: deeply embedded in standard cabinets (4U/6U height), seamlessly adapting to existing infrastructure. ✅ Dual model coverage: 4U65KW: adapt to small and medium power cabinets, flexible expansion 6U130KW: meet the needs of high-density GPU/AI server clusters
Dual redundancy, seamless failover
⚡ Dual power input: 220V power supply, 480W ultra-low standby power consumption. 💧 Dual pump backup: Intelligent circulation of main and standby water pumps, fault switching in seconds, uninterrupted cooling.
Intelligent operation and maintenance
📱 Local/remote dual control: real-time monitoring of temperature, flow, and pressure through the touch screen or Web interface. 🚨 Fault Prophet: automatic recording of alarm information (including power failure records), historical data can be traced.
Strong technology and accumulation
Perfect quality service system
Self-developed software system
Up to 11 intelligent monitoring and control functions, data can be synchronized locally, on the web, and on the app in real time
we use it?
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Professional technical team
Numerous structural, hardware, software engineers, and liquid cooling experts provide round the clock service, professional advice, technical guidance, and after-sales service
|
Product Name |
4U65KW Rack-mount CDU |
6U130KW Rack-mount CDU |
|
Application Scenario |
General data center (CPU/GPU server)/IDC room/energy storage system |
|
|
Heat exchange |
65KW |
130KW |
|
Primary side temperature |
35/45℃ |
|
|
Primary side flow |
6m3/ s |
12m3/ s |
|
Secondary side temperature |
40/50℃ |
|
|
Secondary side flow |
6m3/ s |
12m3/ s |
|
Secondary side liquid type |
Antifreeze/pure water/distilled water/deionized water |
|
|
Size |
482*900*178MM |
482*900*267MM |
|
Filtration accuracy |
50~100µm |
|
